Innovative Electronic Tattoo Monitors Heart Activity

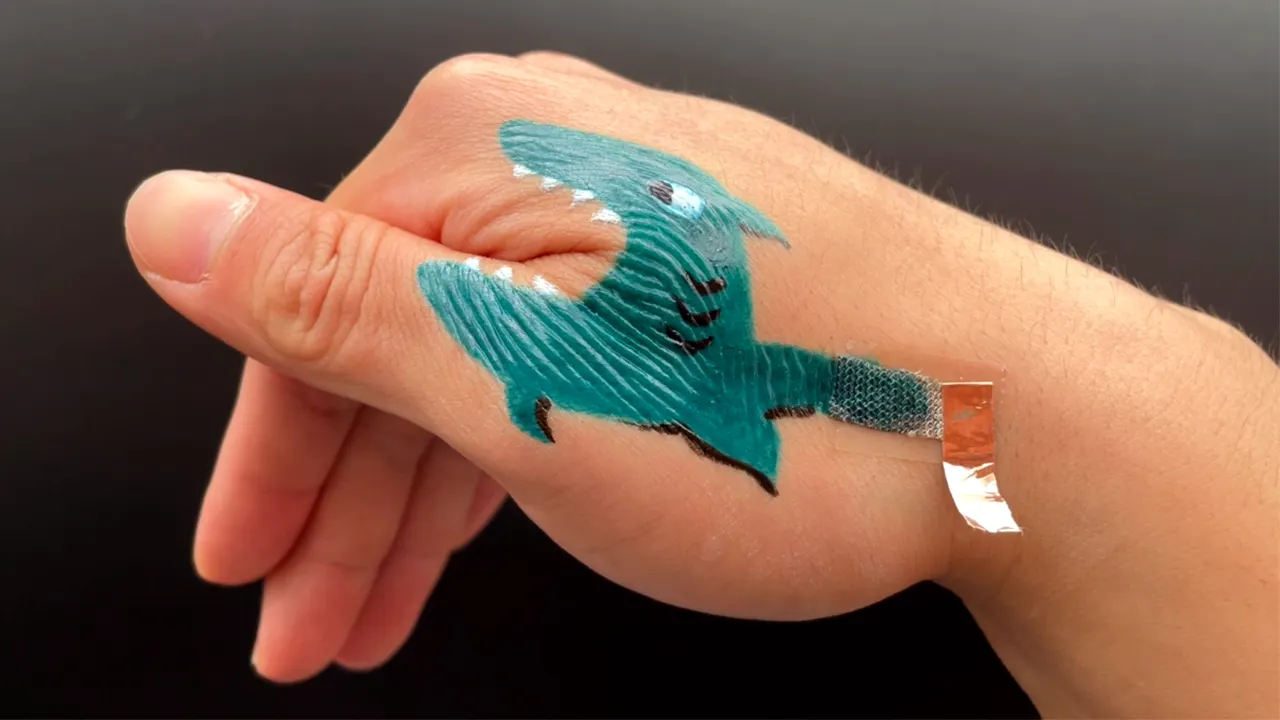

A brightly colored shark painted on your hand might resemble a temporary tattoo. Yet, this design also has the capability to track heart activity. Engineers from Pennsylvania State University have crafted a painted electronic tattoo using conductive ink. This ink is applied directly to the skin and dries to create a functioning electrode.
The researchers can incorporate food coloring to produce nearly any shade or design. As a result, these medical sensors could easily be mistaken for face paint rather than clinical electrodes. A provisional patent has been sought for this innovative technology, with findings recently published in the Proceedings of the National Academy of Sciences.
How Paint-On Electronic Tattoos Work
The team created the ink by blending various polymers and acidic additives into a water-based mix. This wet substance has a consistency similar to glue and dries in less than ten minutes, especially if you use a hairdryer.
Once applied and dried, the ink transforms into an electrode that captures electrical signals from the body. Since the ink is painted directly onto the skin, it adapts to small bumps and uneven surfaces, ensuring more reliable readings.
Challenges with Traditional Wearable Electrode Accuracy
Many conventional electrodes use rigid metal materials. While they are stable, they can detach during physical activity. Some experimental sensors utilize hydrogels, which are softer and flexible but tend to dry out, losing grip over time.
Additionally, prefabricated electrodes may leave tiny air gaps post-application. Factors like hair and sweat can exacerbate this issue, making it challenging for sensors to acquire clear signals. By painting electrodes directly onto the skin, they can better conform to its natural texture.
Connecting the E-Tattoo to Bluetooth
The dried ink interacts with the skin while porous silver fibers link the electrodes to the main system. Some of the wet ink is applied to silver fabric, allowing it to flow and harden, establishing a solid connection.
Clips then attach this fabric to a larger electrical module that can be discreetly placed under clothing. Ultimately, this module transmits the collected signals to a computer via Bluetooth.
This unique design enables the electrodes to stretch over 150% of their original size without breaking, while the structure allows hair and moisture to pass through effectively.
Testing and Applications of Electronic Tattoos
The researchers conducted tests where participants wore the painted electrodes for 12 hours during everyday activities, successfully tracking ECG readings throughout. ECGs monitor the heart’s electrical activity, which can help physicians assess rhythm issues that may need attention.
In another instance, electrodes were used during exercise, maintaining accurate signal recording even with physical movement. The team also managed to capture EMG signals resulting from muscle contractions, sending them to a robotic prosthetic. Interestingly, they explored brain wave detection via hair, reporting no interference during MRI examinations.
Future Potential in Heart Attack Detection
Penn State indicates that, eventually, this technology may aid in earlier heart attack detection. The electrodes can gather detailed ECG data, highlighting shifts in electrical heart activity. Nevertheless, it’s important to note that research hasn’t demonstrated their capability to diagnose heart attacks yet.
Current testing involved participants during regular activities and exercise, but not during actual heart attack events. Thus, practical applications in emergencies remain an open question.
The Importance of Customizable Medical Sensors
Medical wearables often make some individuals self-conscious, and they can be especially daunting for children who require continual monitoring. These electronic tattoos offer more personalized options, allowing wearers to choose playful designs or colors that feel less clinical.
This level of customization might encourage longer use, particularly among younger users or those wary of the stigma attached to traditional medical equipment. Once used, these electrodes can be rinsed and reapplied with new designs, helping users retain one expensive electronic module over multiple uses.
Next Steps for Paint-On Health Sensors
The research team aims to further refine the technology, potentially enabling monitoring of biomarkers like glucose and cortisol in future iterations. They are also considering how healthcare professionals might implement this system.
Interestingly, there’s even a possibility for use in environmental studies, with painted electrodes tracking plant health under varying chemical exposures. However, a consumer version or release date has yet to be announced, as additional validation is necessary before the technology can be fully integrated into medical practices.
What This Means for You
Although you won’t find this electronic tattoo ink at your local pharmacy just yet, the research demonstrates significant potential for wearable medical technology. Future sensors could fit snugly on the skin while remaining comfortable, making long-term health monitoring feel less invasive. Reliable contact could yield valuable insights into health while patients go about their daily routines, possibly catching changes that short-term assessments could overlook.
Of course, this is still a burgeoning field. While comfort and creativity are critical, extensive research is vital to ensure that the technology is both safe and reliable for medical applications.
Key Takeaways
This innovative type of wearable technology could transform health monitoring, resembling more of an art piece than a clinical tool. It’s fascinating to see how this concept might support devices, like prosthetic hands, by utilizing muscle signals for control. The prospects of heart attack detection remain enticing, though there’s still much work left to substantiate such claims.
Would having a colorful, washable design motivate you to wear a medical sensor regularly? Or do you prefer the traditional style? Your thoughts might help shape future innovations.
